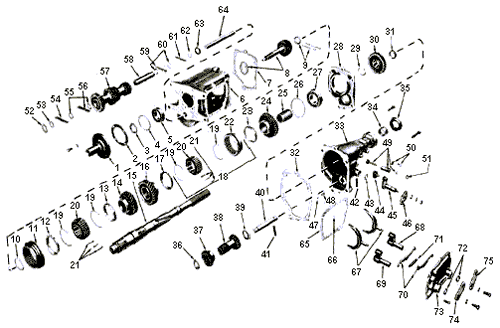

| 1. Bearing Retainer | 38. Reverse Idler Gear (Rear) |
| 2. Gasket | 39. Flat Thrust Washer |
| 3. Bearing Retainer Nut | 40. Reverse Idler Shaft |
| 4. Bearing Snap Ring | 41. Reverse Idler Shaft Roll Pin |
| 5.Main Drive Gear Bearing | 42. Reverse Shifter Shaft Lock Pin |
| 6. Transmission Case | 43. Reverse Shifter Shaft Seal |
| 7. Rear Bearing Retainer Gasket | 44. Reverse Shift Fork |
| 8. Main Drive Gear Oil Slinger | 45. Reverse Shifter Shaft and Detent Plate |
| 9. Bearing Rollers (17) and Cage | 46. Reverse Shifter Lever |
| 10. Snap Ring | 47. Reverse Shifter Shaft Ball |
| 11. 3rd & 4th Speed Clutch Sliding Sleeve | 48. Reverse shifter Shaft Ball Detent Spring |
| 12. 4th Speed Gear Synchronizing Ring | 49. Speedometer Driven Gear, Sleeve and Seal |
| 13. 3rd Speed Gear Synchronizing Ring | 50. Retainer and Bolt |
| 14. 3rd Speed Gear | 51. "O" Ring Seal |
| 15. Mainshaft | 52. Countergear Thrust Washer |
| 16. 2nd Speed Gear | 53. Countergear Spacer Washers |
| 17. 2nd Speed Gear Synchronizing Ring | 54. Bearing Rollers (28) |
| 18. 1st & 2nd Speed Clutch Assembly | 55. Countergear Spacer Washers |
| 19. Clutch Key Spring | 56. Bearing Rollers (28) |
| 20. Clutch Hub | 57. Countergear |
| 21. Clutch Plates | 58. Countergear Roller Spacer |
| 22. 1st & 2nd Speed Clutch Sliding Sleeve | 59. Bearing Rollers (28) |
| 23. 1st Speed Gear Synchronizing Ring | 60. Countergear Spacer Washers |
| 24. 1st Speed Gear | 61. Bearing Rollers (28) |
| 25. Sleeve | 62. Countergear Spacer Washers |
| 26. Rear Bearing Snap Ring | 63. Countergear Thrust Washer |
| 27. Rear Bearing | 64. Countershaft |
| 28. Rear Bearing Retainer | 65. Gasket |
| 29. Selective Fit Snap Ring | 66. Detent Cams Retainer Ring |
| 30. Reverse Gear | 67. Forward Speed Shift Forks |
| 31. Speedometer Drive Gear | 68. 1st & 2nd Speed Gear Shifter Shaft Assembly |
| 32. Rear Bearing Retainer to Case Extension Gasket | 69. 3rd & 4th Speed Gear Shifter Shaft and Detent Plate |
| 33. Case Extension | 70. Detent Cams |
| 34. Extension Bushing | 71. Detent Cam Spring |
| 35. Rear Oil Seal | 72. Lip Seals |
| 36. Reverse Idler Front Thrust Washer (Tanged) | 73. Transmission Side Cover |
| 37. Reverse Idler Gear (Front) | 74. 3rd & 4th Speed Shifter Lever |
| 75. 1st & 2nd Speed Shifter Lever |
